KBL35YD/40YD

留言
产品详情

技术说明

Technical description

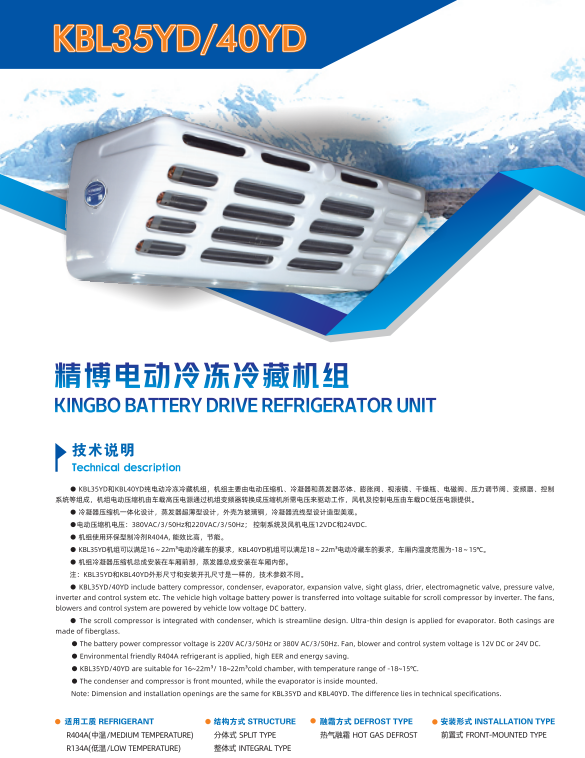

● KBL35YD和KBL40YD纯电动冷冻冷藏机组,机组主要由电动压缩机、冷凝器和蒸发器芯体、膨胀阀、视液镜、干燥瓶、电磁阀、压力调节阀、变频器、控制系统等组成,机组电动压缩机由车载高压电源通过机组变频器转换成压缩机所需电压来驱动工作,风机及控制电压由车载DC低压电源提供。

● 冷凝器压缩机一体化设计,蒸发器超薄型设计,外壳为玻璃钢,冷凝器流线型设计造型美观。

● 电动压缩机电压:380VAC/3 /50Hz和220VAC/3 /50Hz;控制系统及风机电压12VDC和24VDC.

● 机组使用环保型制冷剂R404A, 能效比高,节能。

● KBL35YD机组可以满足16~22m3电动冷藏车的要求,KBL40YD机组可以满足18~22m3电动冷藏车的要求,车厢内温度范围为-18~15℃。

● 机组冷凝器压缩机总成安装在车厢前部,蒸发器总成安装在车厢内部。

注:KBL35YD和KBL40YD外形尺寸和安装开孔尺寸是一样的,技术参数不同。

KBL35YD/40YD include scroll compressor, condenser, evaporator, expansion valve, sight glass, drier, electromagnetic valve, pressure valve, inverter and control system etc. The vehicle high voltage battery power is transferred into voltage suitable for scroll compressor by inverter. The fans, blowers and control system are powered by vehicle low voltage DC battery.

The scroll compressor is integrated with condenser, which is streamline design. Ultra-thin design is applied for evaporator. Both casings are made of fiberglass.

The scroll compressor voltage is 220V AC/3/50Hz or 380V AC/3/50Hz. Fan, blower and control system voltage is 12V DC or 24V DC.

Environmental friendly R404A refrigerant is applied, high EER and energy saving.

KBL35YD/40YD are suitable for 16~22m³/ 18~22m³cold chamber, with temperature range of -18~15℃.

The condenser and compressor is front mounted, while the evaporator is inside mounted.

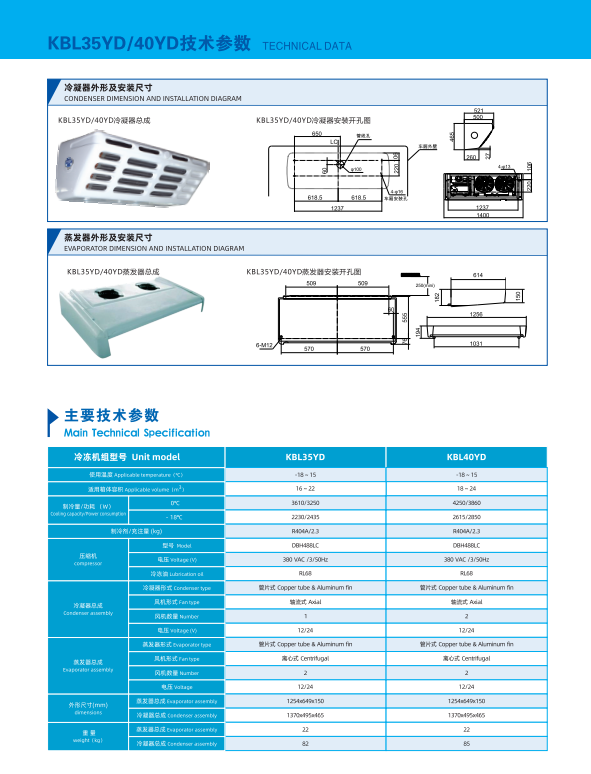

Note: Dimension and installation openings are the same for KBL35YD and KBL40YD. The difference lies in technical specifications.
