技术说明

Technical description

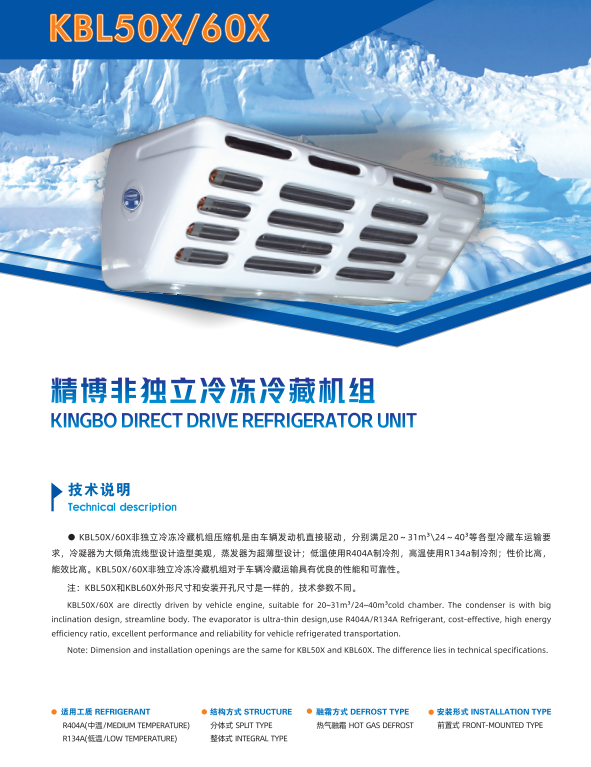

● KBL50X/60X非独立冷冻冷藏机组压缩机是由车辆发动机直接驱动，分别满足20～31m³\24～40³等各型冷藏车运输要求，冷凝器为大倾角流线型设计造型美观，蒸发器为超薄型设计；低温使用R404A制冷剂，高温使用R134a制冷剂；性价比高，能效比高。KBL50X/60X非独立冷冻冷藏机组对于车辆冷藏运输具有优良的性能和可靠性。

注：KBL50X和KBL60X外形尺寸和安装开孔尺寸是一样的，技术参数不同。

KBL50X/60X are directly driven by vehicle engine, suitable for 20~31m³/24~40m³cold chamber. The condenser is with big inclination design, streamline body. Evaporator is with Ultra-thin design. R404A or R134A are applicable for different temperature demands. They are your cost-effective choice, with high EER, excellent performance and high reliability.

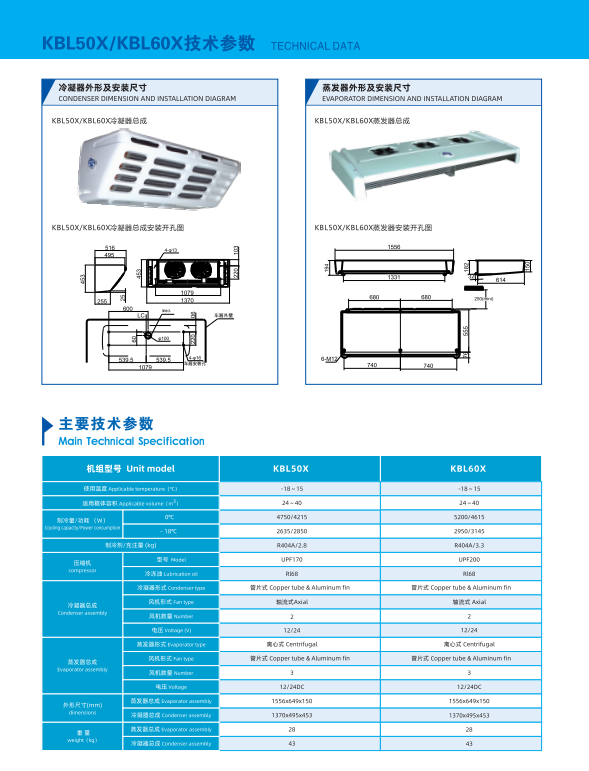

Note: Dimension and installation openings are the same for KBL50X and KBL60X. The difference lies in technical specifications.
