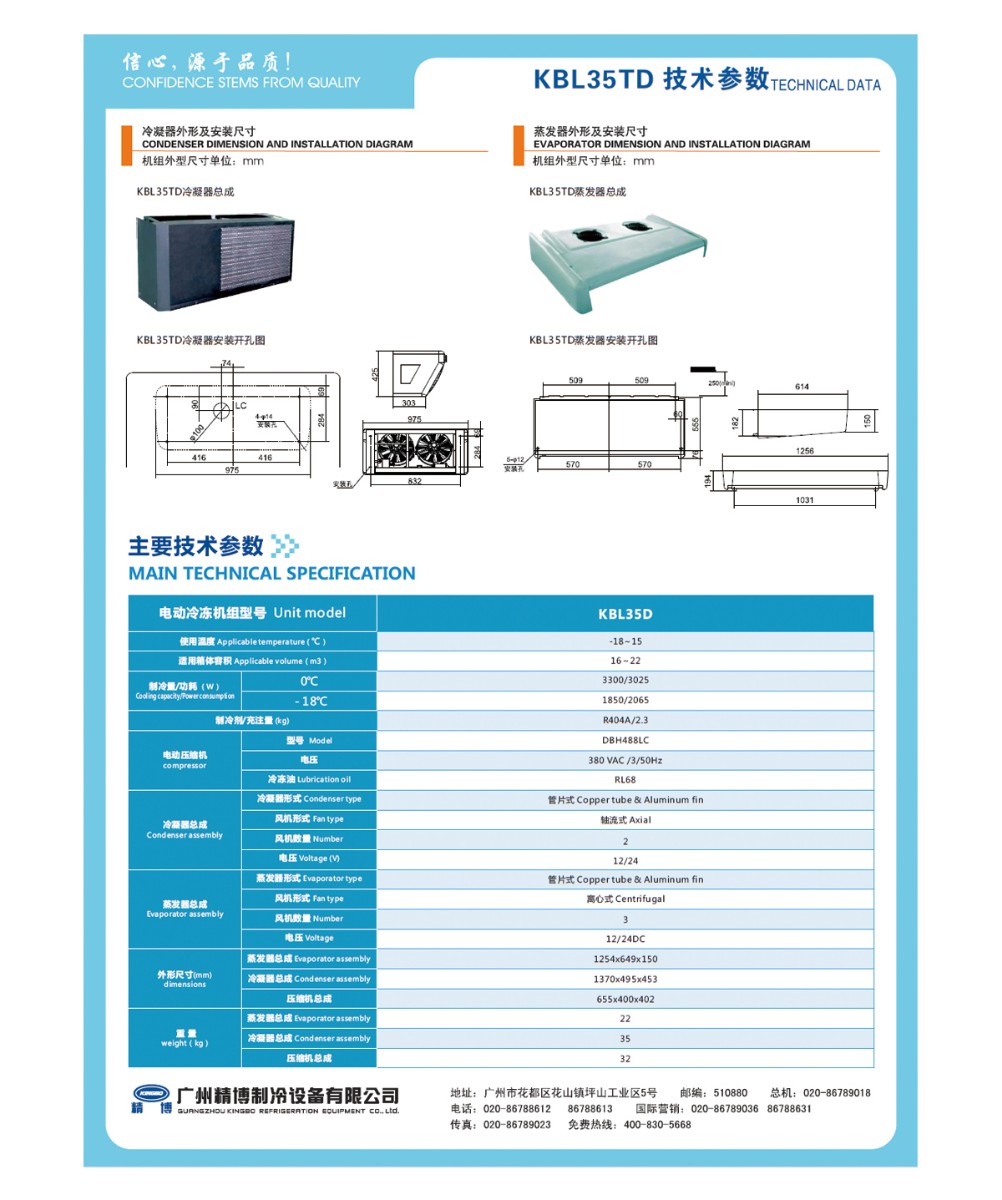

Technical description

KBL35TD includes scroll compressor, condenser, evaporator, expansion valve, sight glass, drier, electromagnetic valve, pressure valve, inverter and control system etc. The vehicle high voltage battery power is transferred into voltage suitable for scroll compressor by inverter. The fans, blowers and control system are powered by vehicle low voltage DC battery.

It is split unit, with condenser assembly, compressor assembly, evaporator assembly and fittings.

The scroll compressor voltage is 220V AC/3/50Hz or 380V AC/3/50Hz. Fan, blower and control system voltage is 12V DC or 24V DC.

Environmental friendly R404A refrigerant is applied, high EER and energy saving.

KBL35TD are suitable for 16~22m³cold chamber, with temperature range of -18~15℃.

The condenser and compressor assembly are skirt mounted, while the evaporator is inside mounted.
